Tubular Handle


	AT-1R

	Extruded aluminum door handle

	Anodized / RAL Coating ACCESSORIES Relative accessories included NOTE Customized dimension "A" of the handle could be arranged

Solid Tubular Handle				Unit : mm
Product Code	A	B	H
ATS25-1-850	850	175	70	25

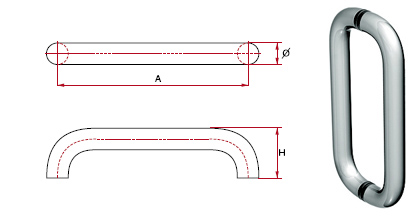

	AT-2R

	Extruded aluminum door handle

	RAL Coating Anodized for solid type only ACCESSORIES Relative accessories included NOTE Customized dimension "A" of the handle could be arranged

Hollow Tubular Handle			Unit : mm
Product Code	A	H
ATH25-2-9	12 inch	70	25
ATH25-2-12	12 inch	70	25
ATH32-2-200	200	90	32
ATH32-2-250	250	90	32
ATH32-2-12	12 inch	90	32
ATH32-2-350	350	90	32

Solid Tubular Handle
Product Code	A	H
ATS25-2-8	8 inch	70	25
ATS25-2-10	10 inch	70	25
ATS25-2-12	12 inch	70	25

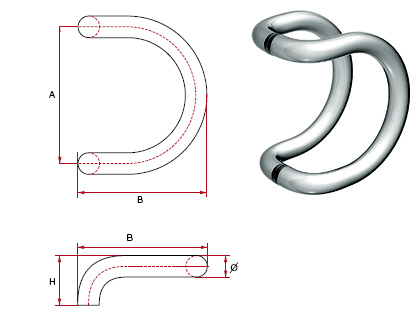

	AT-3R

	Extruded aluminum door handle

	RAL Coating Anodized for solid type only ACCESSORIES Relative accessories included

Hollow Tubular Handle				Unit : mm
Product Code	A	B	H
ATH25-3-6.5	6.5 inch	155	70	25
ATH32-3-200	200	247	70	32
ATH32-3-270	270	247	90	32

Solid Tubular Handle
Product Code	A	B	H
ATS25-3-12	12 inch	155	70	25

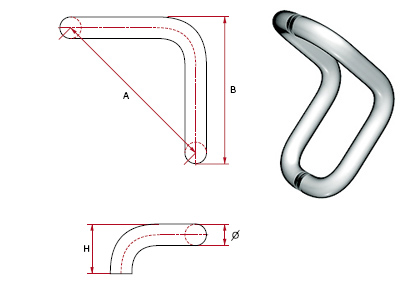

	AT-3T

	Extruded aluminum door handle

	RAL Coating Anodized for solid type only ACCESSORIES Relative accessories included NOTE Customized dimension "A" of the handle could be arranged

Hollow Tubular Handle				Unit : mm
Product Code	A	B	H
ATH25-3T-9	9 inch	185	70	25
ATH32-3T-12	12 inch	245	90	32

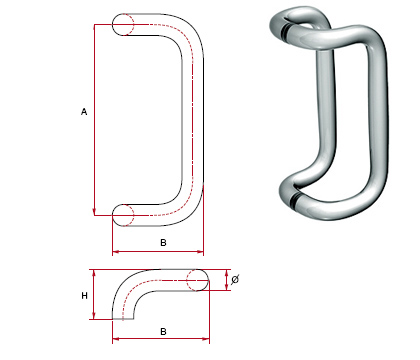

	AT-4R

	Extruded aluminum door handle

	RAL Coating Anodized for solid type only ACCESSORIES Relative accessories included NOTE Customized dimension "A" of the handle could be arranged

Hollow Tubular Handle				Unit : mm
Product Code	A	B	H
ATH25-4-9	9 inch	115	70	25
ATH32-4-250	250	135	90	32
ATH32-4-12	12 inch	135	90	32

Solid Tubular Handle
Product Code	A	B	H
ATS25-4-8	8 inch	115	70	25
ATS25-4-10	10 inch	115	70	25
ATS25-4-12	12 inch	115	70	25
