HEAVY DUTY BEARING HINGES
FOR DOORS WEIGHT UP TO 300LBS(136KGS)
|
 |
 |
|
H127 |
|

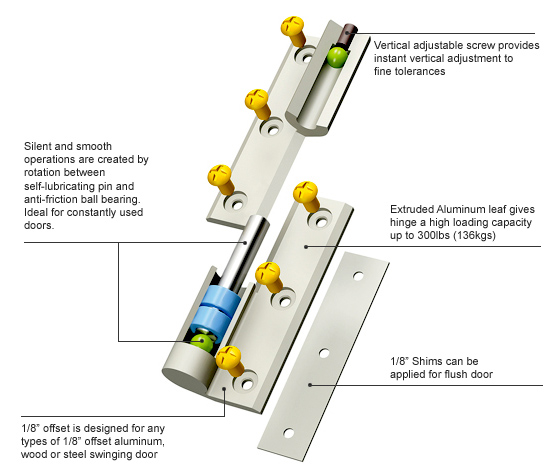

MATERIAL
Extruded Aluminum, Steel Pin and Ball Bearing |
 |
 |
|
Aluminum, Dark
Bronze Anodized
STANDARD ACCESSORIES
2 1/8'' Shims for flush door application
12 One-way screws
4 Cover Strips
APPLICATION
H127 is mainly used in storefronts,
refrigerators, utility, X-ray rooms,
Gamma shielding, Office dividers,
truck bodies, Freezers, Security entrances,
Radio frequency enclosures, Vaults,
Audio rooms, Cold rooms, Hatches, Safes,
Hoppers..... |
|
 |
 |
|
|
|
|

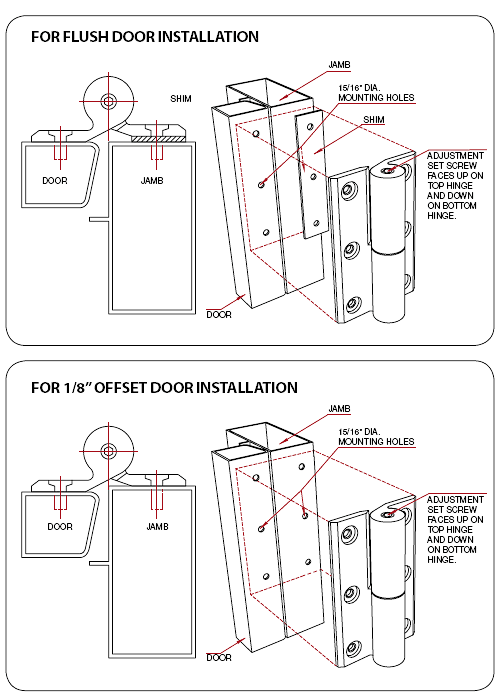

INSTALLATION TYPES |
|
IMPORTANT NOTE
When hinges are properly installed, the top hinge has the adjustment screw
on the top
and the bottom hinge has the adjustment screw on the bottom.
Consult Installation Instruction for fixing details.
|
|
|
 |
|
|
